【MC-1・Spare Parts/Optional Parts】



M1-002【MC-1 Graphite Main Chassis】

Carbon main chassis for [MC-1].

We chose a lightweight, high
rigidity 2.5mm thick carbon material that has been selected through the driving tests in several locations in Japan and outside in other countries.
It’s design optimize roll / pitching performance that affects traction with moderate flexibility and rigidity.
It will be suitable for a wide range of road surface conditions, from low-grip colored concrete/ P tile to relatively high-grip asphalt / carpet track surfaces.
The rear part of the chassis is also equipped with a channel for passing ESC wiring, which contributes to a simple and beautiful build every time!

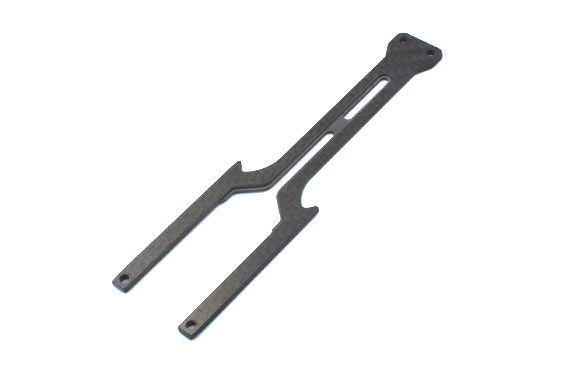

M1-003S 【MC-1 Graphite Upper Deck (Slide Rack Spec.)】


Carbon upper deck (slide rack specification) for [MC-1].
Lightweight and high rigidity 2.5mm thick carbon material has been chosen to create a stylish design.
If you have purchased [MC-1 Bell Crank Specification (RKD-MC1BC)], you will need this upper deck when changing the machine to slide rack spec.

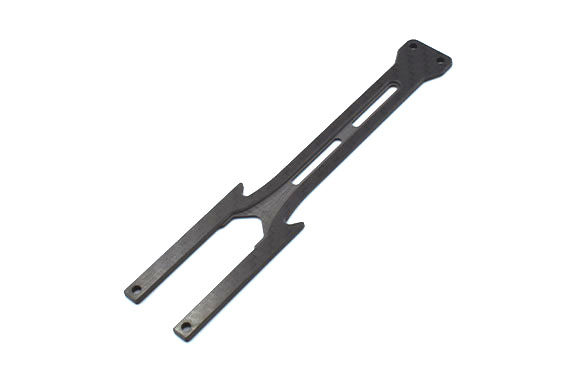

M1-003B 【MC-1 Graphite Upper Deck(Bell Crank Spec.)】


Carbon upper deck (bell crank specification) for [MC-1].
Lightweight and high rigidity 2.5mm thick carbon material has selected to create a stylish design.
If you have purchased [MC-1 Slide Rack Specification (RKD-MC1SR)], you will need this upper deck to change the machine to bell crank spec.

M1-003V 【MC-1 Graphite Vertical Deck (2pcs.)】

Carbon made vertical deck for [MC-1] (2 pcs).
Using a lightweight and high rigidity 2.5mm thick carbon material, the aluminum mid support (M1-302M) and aluminum gear case (M1-302LM1-302R) are connected directly to optimize the pitching rigidity of the machine.

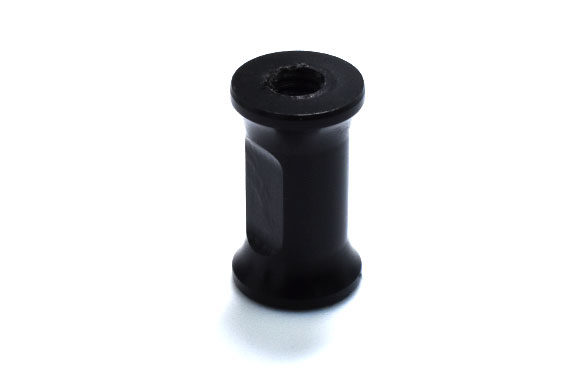

M1-016P 【MC-1 Alu. Rear Body Mount Post (2pcs.)】




                    Aluminum rear body mount post for [MC-1] (2 pcs).
A magnetic rear body mount will be possible by adding it to the carbon rear shock tower (M1-018) and adding the carbon rear body mount plate (M1-016C

M1-016N 【MC-1 Alu. Rear Body Mount Nut (2pcs.)】

Aluminum rear body mount nuts for [MC-1] (2 pcs).
When using the genuine YD-2 body post, apply this to the carbon rear shock tower (M1-018).

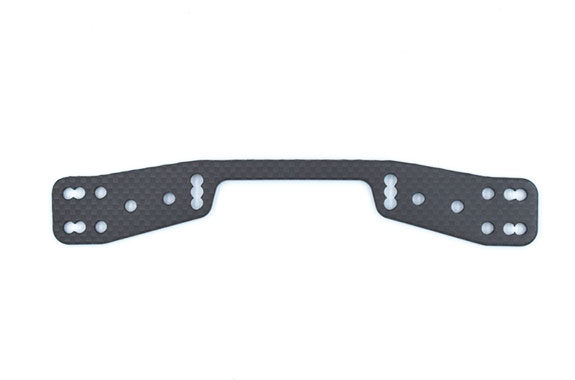

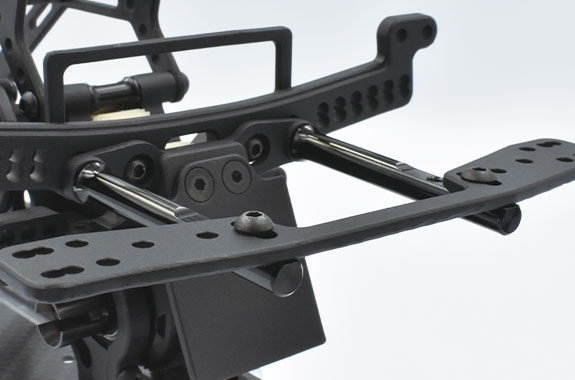

M1-016C 【M1-Graphite Rear Body Mount Plate】


Carbon rear body mount plate for [MC-1].
A magnetic body mount can be used by adding this to the aluminum rear body mount post (M1-016P).
Because of the lightweight and highly rigid carbon material, it transfers the aerodynamics of the body to the chassis and improves traction performance.

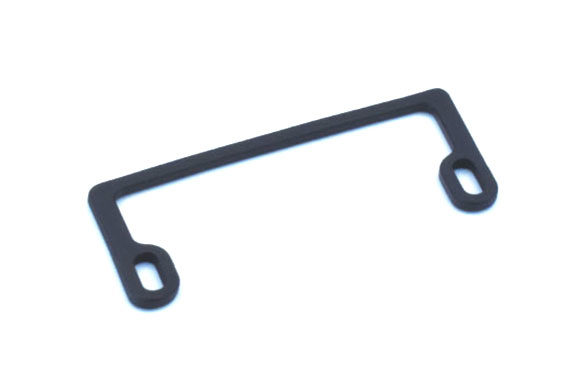

M1-016W 【MC-1 Graphite Wire Holder】

Carbon wire holder for [MC-1].
This will be installed to front side of the carbon rear shock tower (M1-018) and guides the motor wires from the ESC and to the battery.
The mounting hole can be adjusted up and down according to the thickness of the wiring.

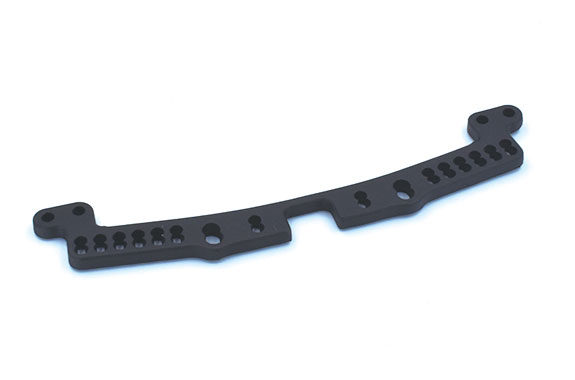

M1-018 【MC-1 Rear Shock Tower】

Carbon rear shock tower for [MC-1].
A shock tower made of lightweight and high rigidity 3mm thick carbon material enhances traction and gives a more direct feel to the chassis.


M1-118A 【MC-1 Battery Holder A Set (1set)




Aluminum battery holder A set for [MC-1].
A thin shorty type Li-po battery compatible aluminum holder that uses the resistance of an O-ring to rotate the knob to install and remove the battery.
* One [MC-1] requires two A sets (front left and rear right of the vehicle) and two B sets (rear left and front right of the vehicle).

M1-118B 【MC-1 Battery Holder B Set (1set)】



Aluminum battery holder B set for [MC-1].
A thin short type Li-po battery compatible aluminum holder that uses the resistance of the O-ring to rotate the knob to install and remove  the battery.
* One [MC-1] requires two A sets (front left and rear right of the vehicle) and two B sets (rear left and front right of the vehicle).

M1-118S6 【MC-1 Battery Holder Spacer (6mm)Optional Parts for Standard Shorty】




This is an optional part for using a thick type shorty Li-po battery for [MC-1].
A 6mm thick aluminum spacer that fits between the main chassis and battery holders A and B, making a set of one (4 pcs).

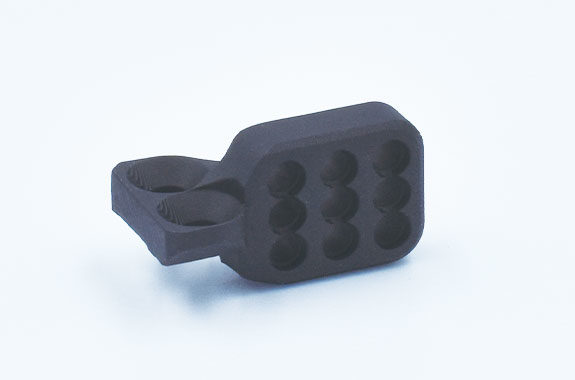

M1-301UL 【MC-1 Alu. Upper Arm Mount (Left)】

Aluminum upper arm mount for [MC-1] (left side).
This is left side parts of the aluminum gear case.
Equipped with a total of 9 mounting holes for the upper arm.
It can be set instantly according to various road surface conditions.

M1-301UR 【MC-1 Alu. Upper Arm Mount (Right)】

Aluminum upper arm mount for [MC-1] (right side).
This is the right side of the aluminum gear case.
Equipped with a total of 9 mounting holes for the upper arm. It can be set instantly according to various road surface conditions.

M1-302L 【MC-1 Alu. Gear Case (Left)】



Aluminum gear case (left side) for [MC-1].
As much weight as possible has been removed whilst maintaining sufficient rigidity to transmit the power of the motor to the rear wheels.
The center of the gear case is also equipped with an upper arm mount mounting part.

M1-302R 【MC-1 Alu. Gear Case (Right)】



Aluminum gear case for [MC-1] (right side).
As much weight as possible has been removed whilst maintaining sufficient rigidity to transmit the power of the motor to the rear wheels.
The center of the gear case is also equipped with an upper arm mount mounting part.

M1-302C 【MC-1 Gear Case Cap (1pc.)】

[MC-1] Aluminum gear case cap (1 pc).
It is used for the differential mounting part on the left and right (M1-302LM1-302R) of the aluminum gear case.
By attaching and detaching the four screws of the gear case cap, you can quickly install and remove the differential for super quick tuning!
* [MC-1] Two gear case caps are used for one kit.

M1-302P 【MC-1 Alu. Gear Case Post (1pc.)】

Aluminum gear case post for [MC-1] (1 pc).
It is used for the part that connects the left and right aluminum gear cases (M1-302L, M1-302R).
([MC-1] Uses two gear case posts for one kit)

M1-302M 【MC-1 Alu. Mid Support】

Aluminum mid support for [MC-1].
This is a key part of the traction of the machine that firmly connects the main chassis, upper deck, and vertical deck.
With just the right amount of flexibility and weight reduction we achieved a high level of chassis flex for ultimate performance!

M1-303 【MC-1 Alu. Idler Gear Shaft (1pc.)】

Aluminum idler gear shaft for [MC-1] (1 pc).
A lightweight aluminum material with a hard wear-resistant coating.
([MC-1] 1 unit requires 2 idler gear shafts)

M1-304PA 【MC-1 Alu. Motor Plate】


Aluminum motor plate for [MC-1].
The 3mm thick aluminum motor plate balances rigidity and weight reduction.
It transmits the power of the motor to the spur gear precisely.
By fixing it to the gearbox with a special larger fixing, the motor mounting height can be adjusted in 3 steps up and down without removing the spur gear, and the balance of the center of gravity of the machine can be changed instantly.
Since the end of the motor bearing is exposed, it is easy to lubricate the motor.

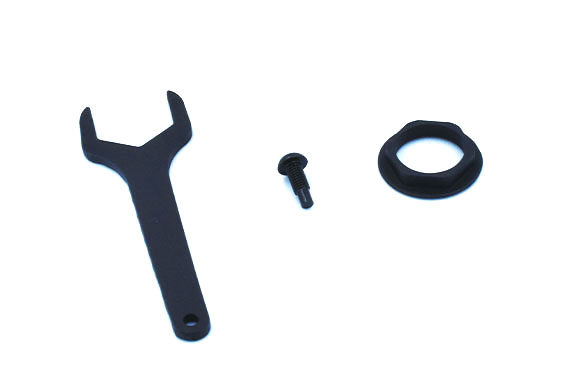

M1-304M 【MC-1 Alu. Motor Plate Parts】

A set of parts for fixing the motor plate for [MC-1].
The set includes a pin screw used to position the motor plate, a large aluminum nut for fixing to the gearbox and special tools.

M1-304FM 【MC-1 Alu. Cooling Fan Mount】

Aluminum cooling fan mount for [MC-1].
It can be attached to the front and rear parts of the of the vertical deck.
Not only can you install a cooling fan but you can also adjust the rigidity of the chassis by choosing the position of the mount.

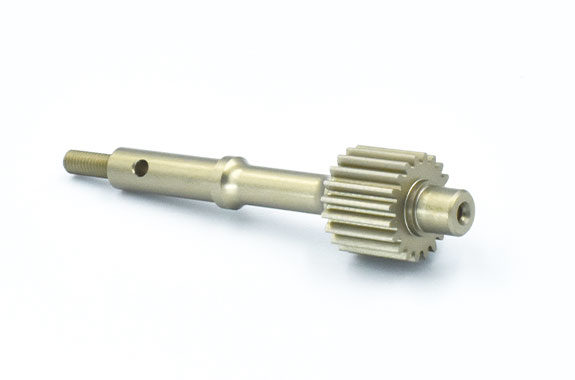

M1-631 【MC-1 Alu. Top Shaft】




Aluminum top shaft for [MC-1].
A super hard treatment is applied to the lightweight aluminum material to achieve both a light pickup and high wear resistance.

M1-644 【MC-1 Spur Gear Holder Set】

Aluminum spur gear holder set for [MC-1].
A center lock method is used in which the spur gear is sandwiched between lightweight aluminum holders and fixed with a single nylon nut.
Spur gear replacement is faster  than the conventional 4-point screw fixing method.
There is no need to worry about centering the spur gear because it is positioned by the four pins equipped on the spur gear holder.

M1-REM 【MC-1 Rear ESC Mount Set】



ESC mount set for [MC-1].
Due to the hybrid structure of the aluminum base and the carbon ESC plate, it can be removed from the mount even when the ESC is attached to the plate, making it easy to access the gearbox for maintenance
